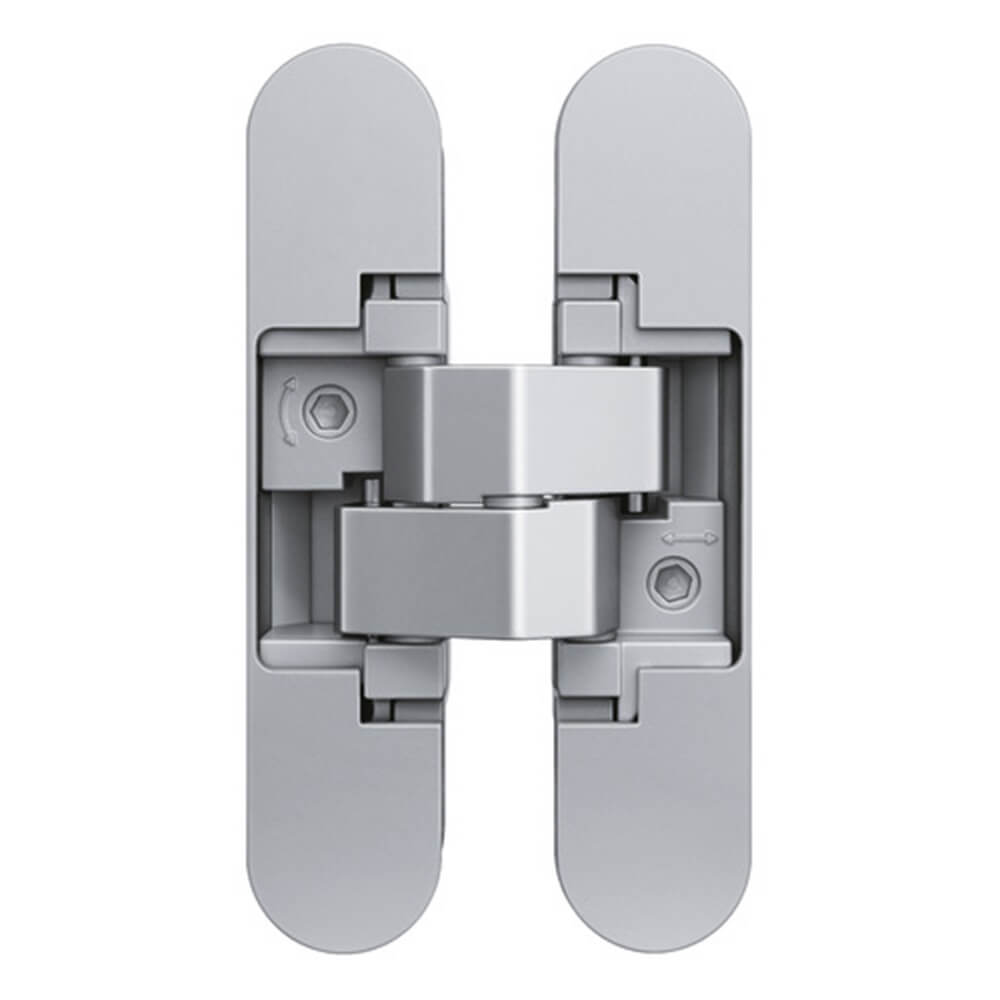

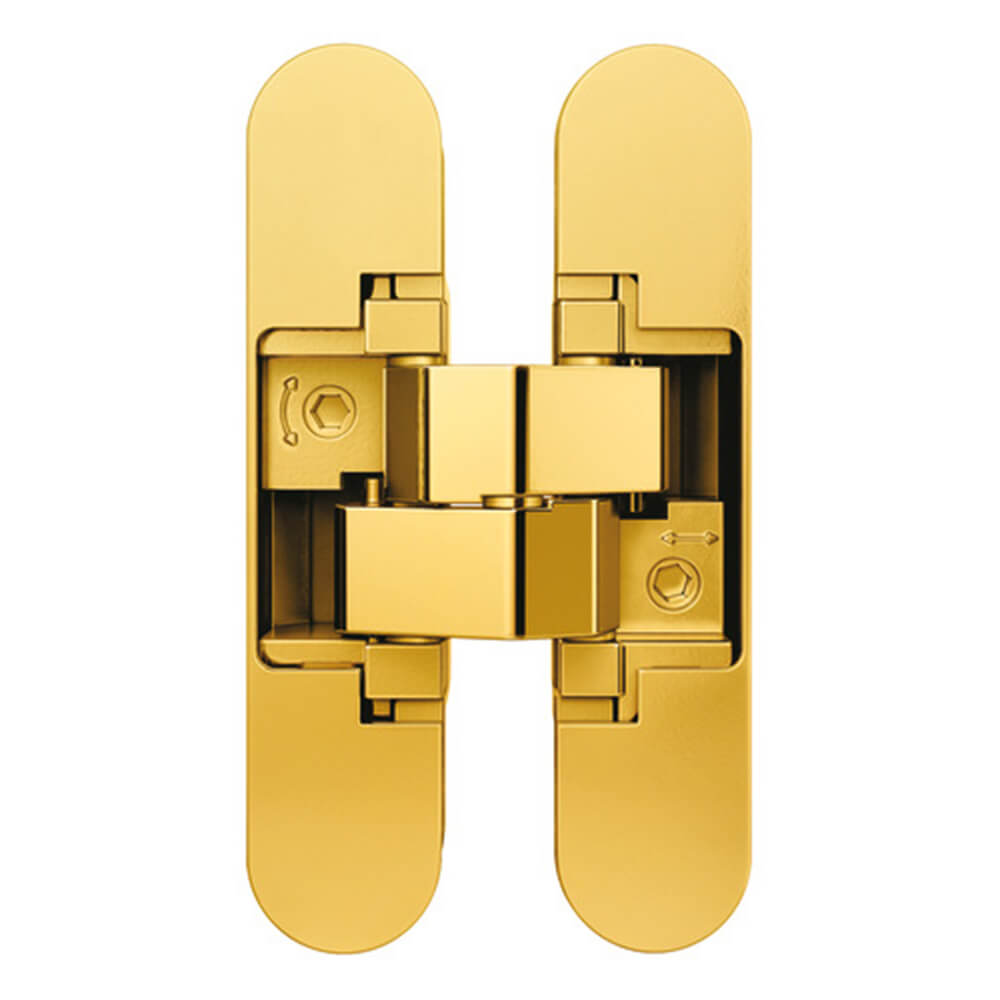

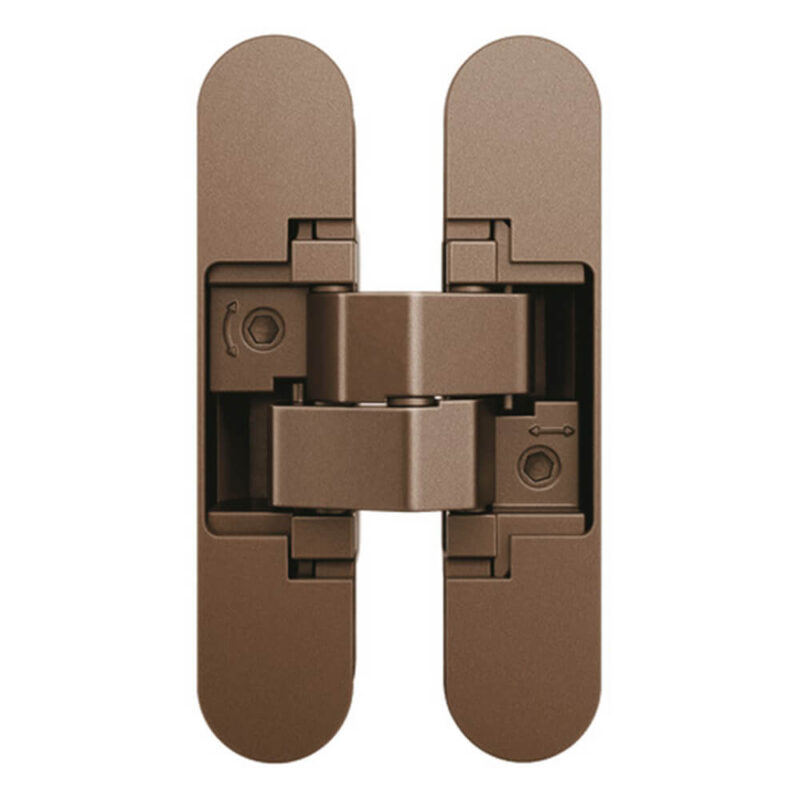

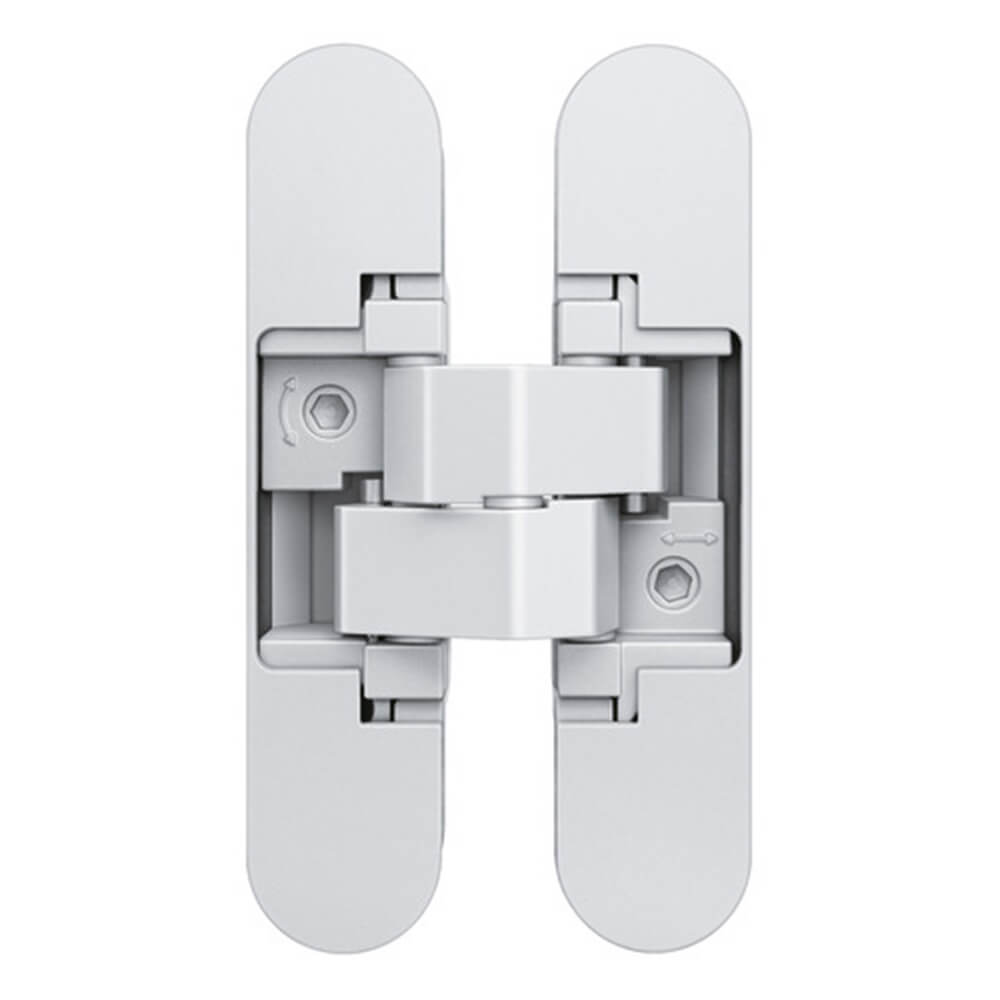

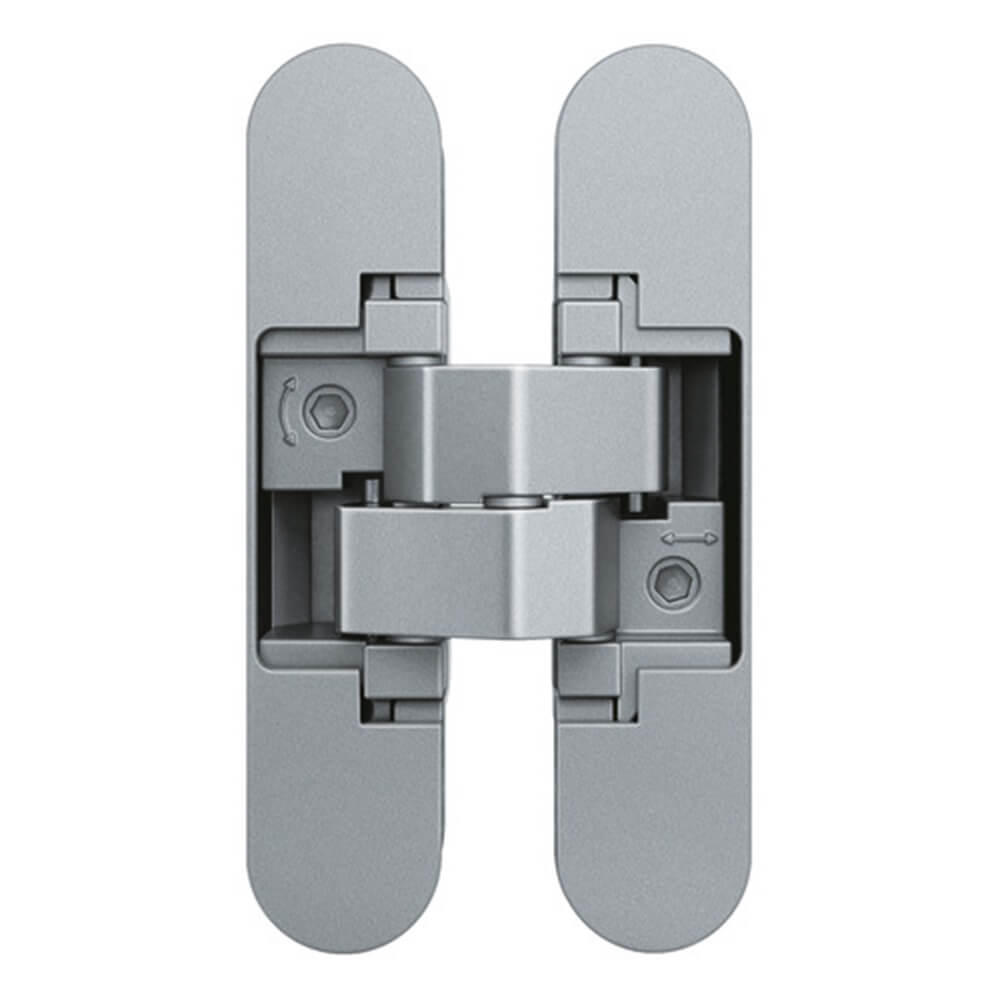

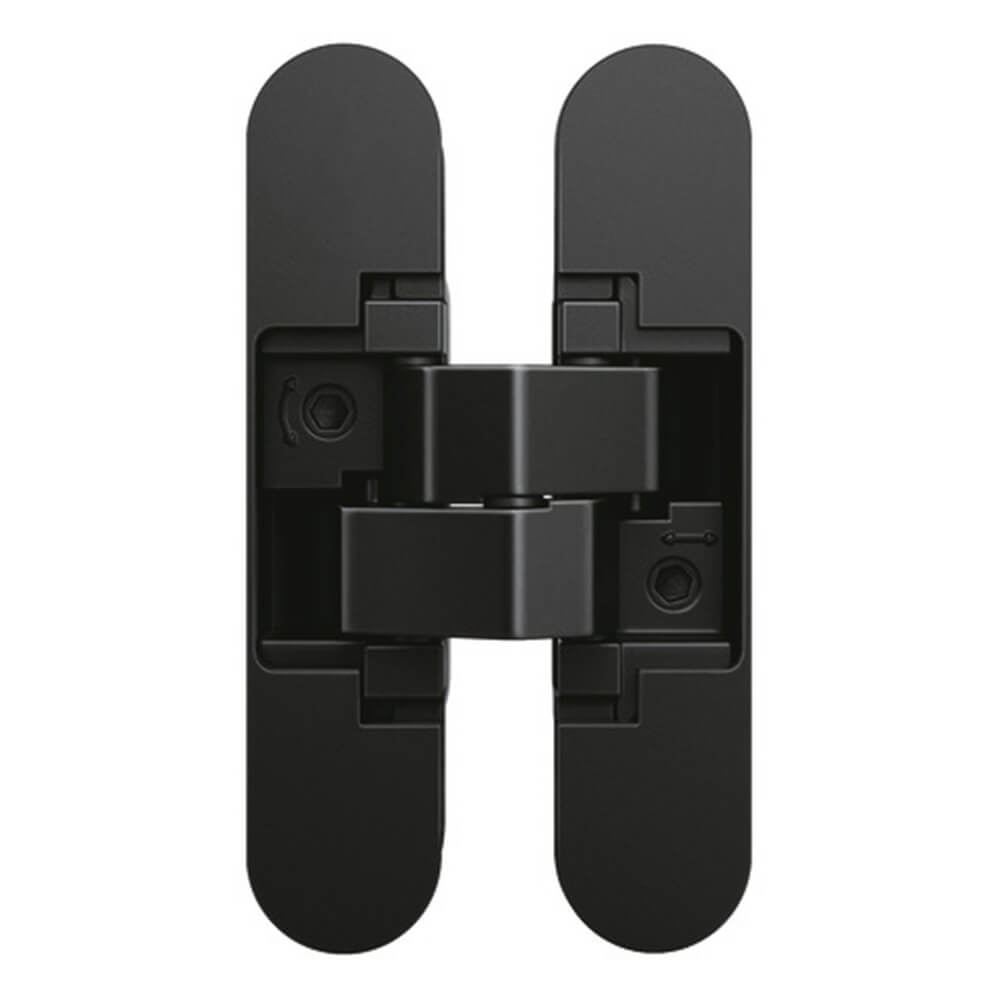

Load capacity
40,0 kg
Overall length
110,0 mm
Width (door part)
24,0 mm
Width (frame part)
24,0 mm
Cutter diameter
16,0 mm
Collar ring diameter
27,0 mm
Opening angle
180 degree
Type of door leaf
timber
Rebate
unrebated
Type of frame
aluminium frame, blind frame, block frame, casing frame
Note
The load capacity mentioned above refers to the use of 2 hinges per door leaf (900 x 2100 mm).
Suggested screws: Frame side: Countersunk head screws DIN 7505 A, Diameter 4,5 mm Door side: Pan head screws DIN 7505 B, Diameter 4,5 mm
Alternatively, the routing can be carried out with a cutter diameter of 14,0 mm and a collar ring diameter of 25,0 mm.
